Planet 24-Port Power over Ethernet Web Management/POE-2400P4 :: Detalle de Producto ::
The PLANET POE-2400P4 is 24-Port IEEE 802.3af Power over Ethernet Web Management
injector Hub and complies with IEEE 802.3, IEEE 802.3u and IEEE 802.3af
standards. With 24 10/100Base-TX Fast Ethernet ports, POE-2400P4 support full
48V DC power for any remote IEEE 802.3af powered device (PD) like Wireless LAN
Access Point, IP phone, and IP Camera. Supporting PoE power budget of 380 watts,
POE-2400P4 provides sufficient 15.4 watts PoE power to 24 remote PD devices.
The POE-2400P4 is installed between a regular Ethernet Switch and the powered
devices, injecting power without affecting the data transmission. They offer a
cost effective and quick solution to upgrade network system to IEEE 802.3af
Power over Ethernet system without replacing the existing Ethernet switch. There
are 48 RJ-45 STP ports on the front panel of PoE Injector Hub, in which the 24
ports on the lower stack function as "Data input" and the other 24 ports on the
upper stack function as "PoE (Data and Power) output". Each of the "PoE output"
port on the upper stack operates as a power injector which transmits DC Voltage
to the CAT 5 cable to transfer data and power simultaneously between the
Injector and Splitter.
To efficiently manage the powered devices, POE-2400P4 provide Web management
interface in which administrators can use the functions including port Enable /
Disable, port priority, system configuration, and Username / Password changing
and with smart features for powered device. The PoE injector Hub can auto detect
the power status of each port and show massages on its Web management interface.
These features also provide a cost-effective way to manage the device via from
Internet whenever you are at work or at home.

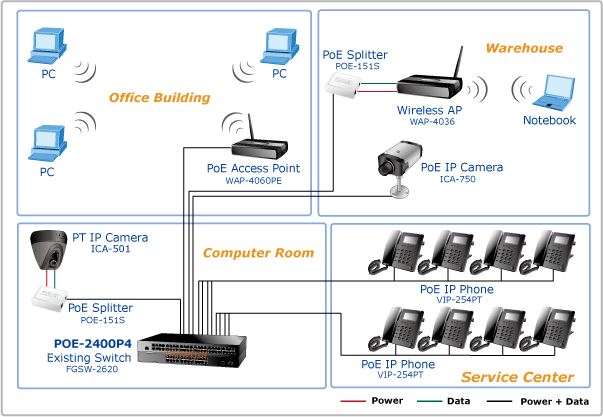

PoE Injector Hub
For the places hard to
find the power outlet, POE-2400P4 provides the easiest way to power your
Ethernet devices such as PLANET IP Camera ICA-750 on the ceiling and the
Wireless Access Point WAP-4060PE installed on the top of the building.
To control the power system of your networking devices, POE-2400P4 can directly
co-work with PoE IP phone like PLANET VIP-254PT to build VoIP telephony network
in the office. Furthermore, the POE-2400P4 can be directly connected to any
third party 802.3af compliant devices and PoE Switches installed 100 meters
away.
Interface
• 48-Port RJ-45
STP
–24-Port “Data input”
–24-Port “PoE (Data + Power) output”
• 1
10/100Base-TX Management port with Auto MDI / MDI-X
feature
PoE
• Complies with IEEE 802.3af Power over Ethernet
Mid-Span PSE
• Up to 24 IEEE 802.3af devices powered
• Support PoE Power
up to 15.4 watts for each PoE ports
• Auto detect powered device (PD)
•
Circuit protection prevent power interference between ports
• Remote power
feeding up to 100m
PoE Management
• Total PoE power budget
control
• Pert port PoE function enable/disable
• PoE Port Power feeding
priority
• Per PoE port power limit
• PD classification
detection
Management
• Web interface for remote management
•
Firmware upgrade through Web interface
• PLANET Smart Discovery utility
automatically finds PLANET devices on the network
• SNMP Trap for alarm
notification of events
Hardware
• 19-inch rack mountable; 1U
height
• Reset button for reset to default setting and system reboot
• LED
indicators for PoE ready and PoE activity
Standard Compliance
•
IEEE 802.3 10Base-T
• IEEE 802.3u 100Base-TX
• IEEE 802.3af Power over
Ethernet
• FCC Part 15 Class A, CE
| Model |
POE-2400P4 |
| Hardware
Specification |
| Interface |
"Data" Input Ports: 24 x RJ-45 STP
"PoE (Data+Power)" Output Ports: 24 x
RJ-45 STP
Management Port: 1 x RJ-45; 10/100Base-TX, auto-negotiation,
auto-MDI / MDIX |
| LED |
System: Power x 1 (Green)
Management Port x2: 10/100 (Green /
Orange)
Per PoE Port: PoE in Use x 1 (Green)
|
| Network Cable |
10Base-T: 2-Pair UTP Cat. 3, 4, 5, up to 100m (328ft)
100Base-TX: 2-Pair
UTP Cat. 3, 4, 5, up to 100m (328ft)
EIA/TIA- 568 100-ohm STP
(100m)
|
| Dimension (W x D x H) |
440 x 200 x 44 mm (1U height) |
| Weight |
3.3kg |
| Power Requirement |
100-240V AC, 50/60 Hz |
| Power Consumption |
400 watts max. |
| Operating Temperature |
0 ~ 50 Degree C |
| Storage Temperature |
-40 ~ 70 Degree C |
| Humidity |
5 ~ 95% (Non-condensing) |
| Cooling |
Fan x 2 |
| Power over
Ethernet |
| PoE Standard |
IEEE 802.3af Power over Ethernet / Mid-Span PSE |
| PoE Power supply Type |
Mid-Span |
| PoE Power Output |
Per Port DC 48V 15.4 watts |
| Power Pin Assignment |
4/5(+), 7/8(-) |
| PoE Power Budget |
380 Watts |
| Management |
| Management Interface |
Web, PLANET Smart Discovery Lite |
| PoE Management |
Power Limit by Priority and Total Limit
Per port power
enable/disable
Power feeding priority
Current usage and status
Total
power consumption
|
| Management Feature |
System / Management functions setup
Web firmware upgrade
SNMP Trap for
alarm notification of events
|
| Standards
Conformance |
| Standards Compliance |
IEEE 802.3 10Base-T Ethernet
IEEE 802.3u 100Base-TX Fast Ethernet
IEEE
802.3af Power over Ethernet
|
| Regulation Compliance |
FCC Part 15 Class A, CE | |
| |
|
